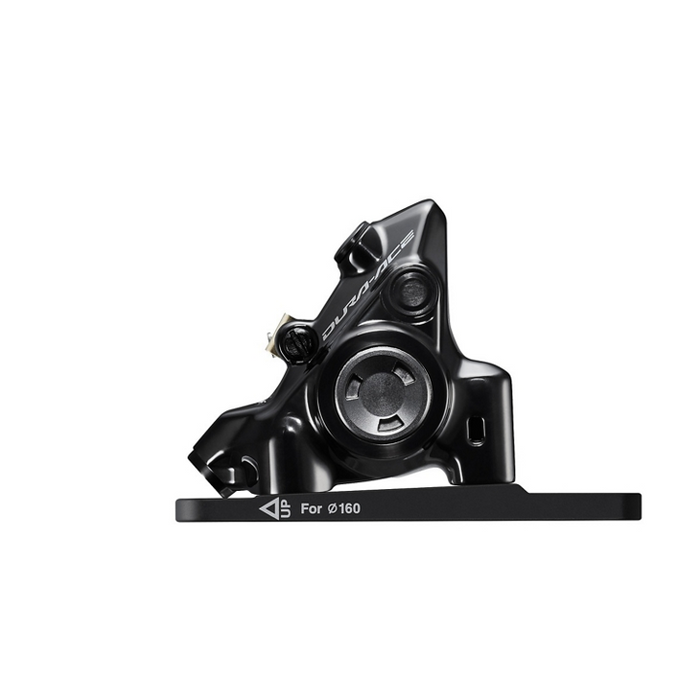

Shimano Hydraulic Disc Brake Caliper Dura Ace BR-R9270 Flat Mount
IMPORTANT specifications:
Front caliper is for 140/160mm Rotor only.
Rear caliper comes with fixing bolt for 25mm frame thickness only.
Fixing bolt for other sizes of frame thickness has to be purchased separately.
DURA-ACE Hydraulic Disc Brake Caliper
BR-R9270
With an all-new design, DURA-ACE BR-R9270 hydraulic calipers are our most compact yet. MONO-BODY construction ensures light weight and rigidity, proving that good things can come in small packages.
With an all-new MONO-BODY construction design, high performance braking has reached a new peak. The BR-R9270 caliper drops weight while also providing increased pad clearance, ensuring a quieter ride. Lastly, a new bleeding process makes maintenance easier than ever.
FEATURES
One-piece structure maximizes stiffness and reduces weight
10% wider pad clearance decreases the chance of rotor rub
Maintenance-friendly bleeding process
PRODUCT SPECIFICATIONS
MODEL NO: BR-R9270
SERIES: DURA-ACE R9200 Series
Color: Series color
Average weight: 97
Brake type: Hydraulic disc brake
Brake hose (Kit): SM-BH90-JK-SSR
Hose joint: Straight
Brake hose color (kit)|1: Black
J-Kit spec (for OEM): ✔
ICE TECHNOLOGIES pad compatible caliper: ✔
Pad|Standard 1: K05Ti-RX Resin (w/o fin)
Pad|Standard 2: L05A-RF Resin (w/ fin)
Pad|Option 1: K04Ti-MX Metal (w/o fin)
Pad|Option 2: L04C-MF Metal (w/ fin)
Fixing screw spec for rear mount|10 mm mount: ✔
Fixing screw spec for rear mount|15 mm mount: ✔
Fixing screw spec for rear mount|20 mm mount: ✔
Fixing screw spec for rear mount|25 mm mount: ✔
Fixing screw spec for rear mount|30 mm mount: ✔
Fixing screw spec for rear mount|35 mm mount: ✔
Recommended brake lever: ST-R9270 ST-R9180
Recommended disc brake rotor: RT-MT900
Oil: SHIMANO Mineral
ONE WAY BLEEDING: ✔
Mount type: Flat mount
Piston: 2
Caliper|MONO-BODY: ✔
Caliper fixing bolt|Tool size: 4 mm
Caliper fixing bolt|Anti loosen method: Screw fixing pin, snap ring
Pad mount: Pad axle
